Mobile Products
As a custom manufacturer, we tailor our mobile products to meet your particular specifications. Perimeter Solutions Mobile Products are designed to provide quick, mobile foam fire protection for flammable liquid hazards. These hazards include tank farms, loading racks (both truck and rail), chemical processing plants and marine off-loading / on-loading terminals. Perimeter Solutions Mobile Products greatly increase the firefighting ability of industrial, municipal and military fire emergency responders.
Our Mobile Products can be used with all Perimeter Solutions foam concentrates.

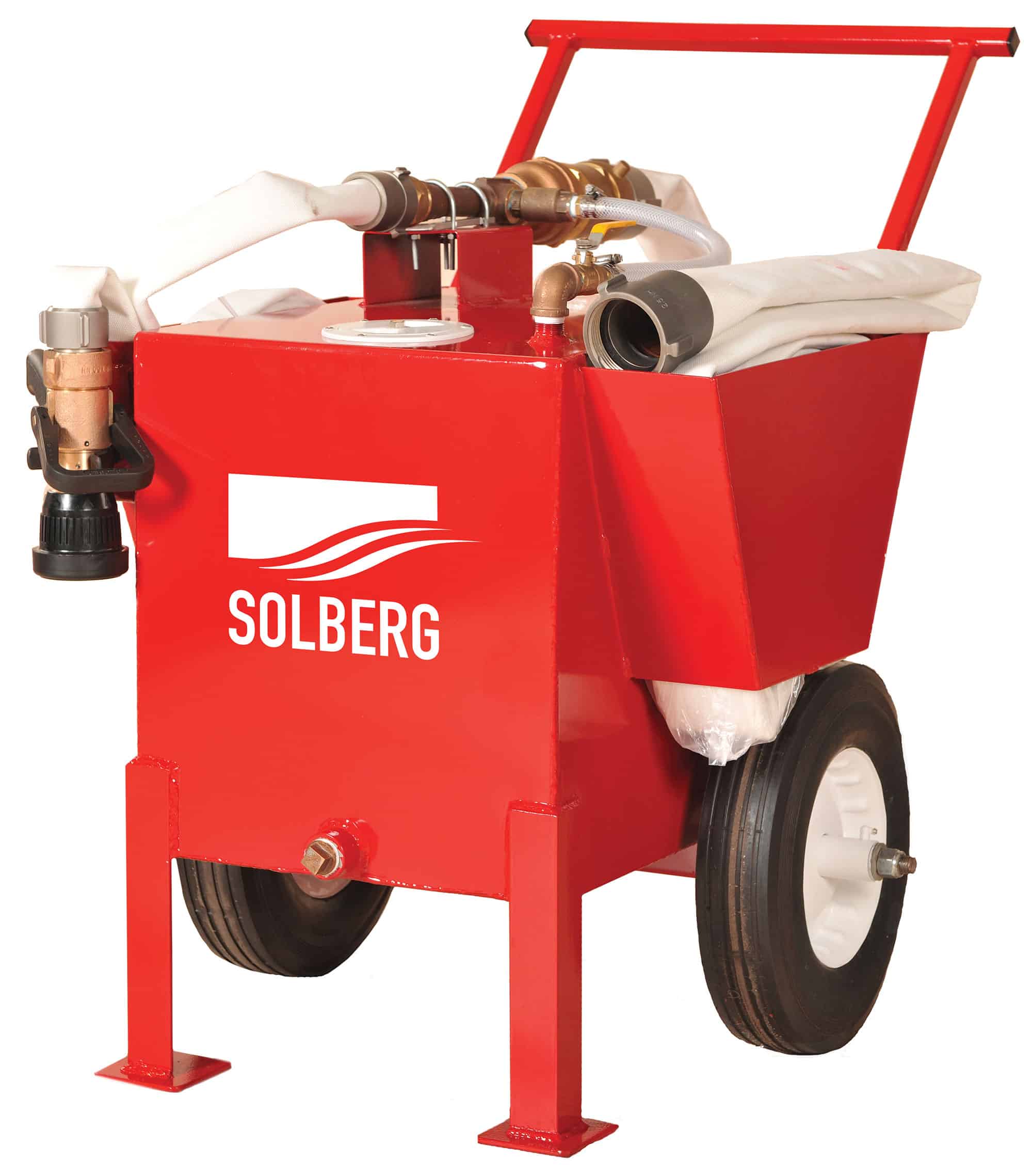

Foam Cart
The Perimeter Solutions Mobile Foam Cart is designed and constructed for one-person operation. This foam station can function at its full potential quickly in an emergency situation. Foam concentrate is stored in a 35-gallon (133 liters) stainless steel tank equipped with a 95-gpm (360 lpm) eductor and pick-up tube. The pick-up tube is connected to the tank and utilizes a metering device to determine what percentage of foam concentrate is introduced into the water stream. On the inlet of the eductor, a supply fire hose is connected that delivers water from an independent source. A fire hose and discharge nozzle are connected to the outlet. When in operation, water flows through the eductor creating a vacuum that draws foam concentrate out of the tank to the metering valve of the eductor and into the water stream, delivering foam solution to the nozzle.
Foam Trailers
The Perimeter Solutions Foam Trailer is a complete mobile package meeting all applicable NFPA standards consisting of a trailer constructed with frame, wheels, and axles capable of carrying the total charged weight of the trailer assembly and the foam concentrate. The trailer frame includes a tongue jack, electrical connections, NFPA 1901 lighting package (optional), reflective striping, rear mud flaps, and rear stabilizer jacks. The foam system can utilize either of two foam storage vessel designs: polyethylene tote(s), single, dual, or multiple, or a rigidly constructed metal foam tank. The foam monitor is capable of delivering up to 1000 gpm (3785 lpm) of foam solution at a pressure of 100 psi (7.0 bar). The monitor connections are up to 3.0 in. (76 mm). The self-educting monitor nozzle is capable of delivering up to 1000 gpm (3785 lpm) at 100 psi (7.0 bar).
Foam Proportioning Trailers
The Perimeter Solutions Foam Proportioning Trailer is a complete mobile package meeting all applicable NFPA standards consisting of a trailer constructed with frame, wheels, and axles capable of carrying the total charged weight of the trailer assembly and the foam concentrate. The trailer frame includes a tongue jack, electrical connections, NFPA 1901 lighting package (optional), reflective striping, rear mud flaps, and rear stabilizer jacks. Concentrate tanks are available in 500, 750, 1000 gallon (1893, 2839, 3785 liters) capacities. Tanks are constructed of carbon steel in accordance with NFPA 11C “Mobile Foam Apparatus”. Tanks contain the required swash partitions and removable gasketed top for ease of filling, cleaning, and inspection. The foam proportioning trailer contains a positive displacement foam concentrate pump, which is driven by an air-cooled diesel engine complete with electric start. The pump is constructed of materials compatible with all types of firefighting foam concentrates (AFFF, AR-AFFF) and can be designed for use with 1%, 3%, or 6% foam concentrates. The in-line balance pressure proportioning systems maintain an equal pressure in the foam concentrate and water inlets to the proportioner. This allows the system to be used over a wide range of flow rates and available pressures. A duplex pressure gauge provides a reading of the foam concentrate and water pressure.
Twin-Agent Unit
The Perimeter Solutions Twin-Agent unit is designed and constructed for one-person operation. This mobile or fixed-firefighting unit can function at its full potential quickly in an emergency situation. The 100/30 Twin-Agent Unit (TAU) consists of two agent tanks, twin 50 ft. (15 m) hose and single nitrogen cylinder with regulator assembly to control the pressure flow of gas into the agent tank assemblies. The 100/30 TAU is mounted on a skid frame base for ease of lifting or moving.
FOAM CARTS
Mobile Foam Cart
Mobile Foam Cart Polyethylene
FOAM TRAILERS
Foam Trailer
Dual Agent Trailer
FOAM PROPORTIONING TRAILERS
Foam Proportioning Trailer
TWIN-AGENT UNIT 100/30
Twin Agent Unit 100/30
